Connection
Select an existing HubSpot connection or create a new one. The source works with either HubSpot connection type:Whichever type you use, the HubSpot app or private app must be granted read scopes for every object you intend to read. A missing scope surfaces as a permission error when the component loads the object list or the field list, not when the connection is created.

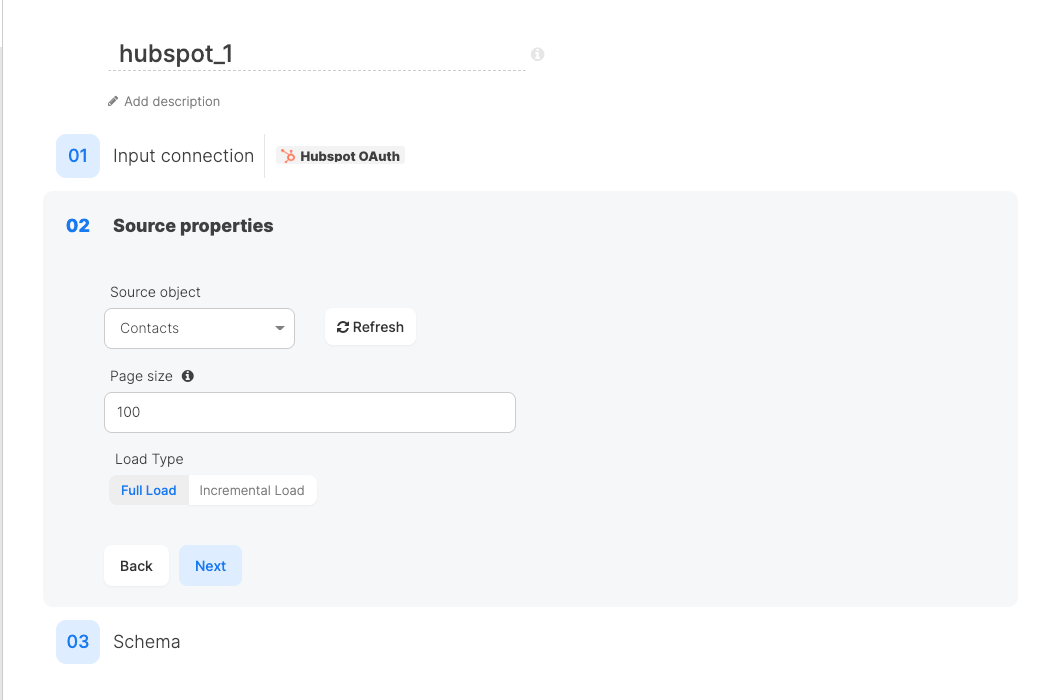

Source Properties
The source is configured in Step 02 of the component editor.
Source object
Select the HubSpot object to read. The dropdown combines a fixed list of standard CRM objects with the custom objects discovered in your account:
Custom objects are read from your account’s own schema definitions and appear in the same dropdown under their HubSpot label, so no extra configuration is needed to pipe a custom object.
The standard object list is a fixed catalog, not a reflection of what your portal has enabled. An object tied to a HubSpot feature you do not own (Commerce Payments or Courses, for instance) still appears in the dropdown but fails at field discovery time. Custom objects, by contrast, are always discovered live from your account.
Page size
The number of records requested per API call. Defaults to100.
Accepts a number or a package variable (any value beginning with $). Anything else is rejected with the message Value can only be a number or variable.
Lower the page size if a job on a wide object times out. HubSpot returns every selected property for every record in the page, so a contacts object with several hundred properties produces a large response per call. Raising the page size reduces the number of API calls but increases per-call response size and the chance of a timeout.
HubSpot enforces its own maximum page size per endpoint and rejects requests above it. If a job fails with a validation error naming the
limit parameter, lower the page size.Load Type
Select how records are read on each pipeline run:- Full Load. Reads every record of the selected object on every run.
- Incremental Load. Reads only records whose sync date field falls on the chosen side of a reference date.
Incremental Load is only selectable once the component has discovered a usable date field on the object. If the option is unavailable, the selected object does not expose
hs_lastmodifieddate.Incremental Load Settings

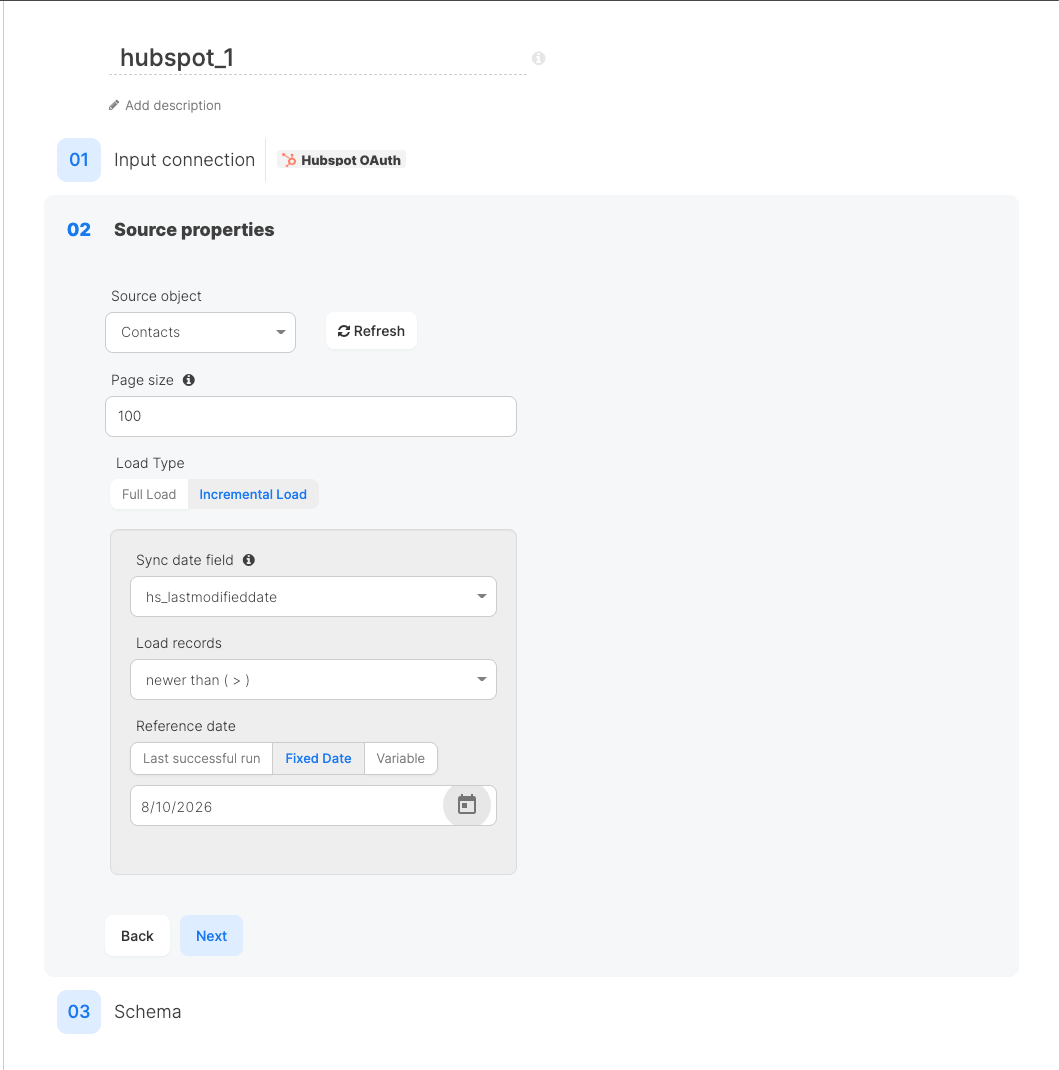

Selecting Incremental Load reveals three more fields.
hs_lastmodifieddate, HubSpot’s own last-modified timestamp. The component deliberately offers only this property, so the dropdown has a single option. Because the filter is on last-modified rather than created time, incremental runs pick up both new and edited records.
Load records. The filter direction relative to the reference date:
Reference date. Where the comparison date comes from:
- Last successful run. Fills the date from the
$_PACKAGE_LAST_SUCCESSFUL_JOB_SUBMISSION_TIMESTAMPsystem variable, so each scheduled run reads only what changed since the previous successful run was submitted. Recommended for scheduled pipelines. - Fixed Date. A specific calendar date, chosen from a date picker. Use it for a one-off backfill.
- Variable. A package variable, for cases where the window is driven by something other than the last successful run.
On the very first run of a pipeline there is no previous successful job, so
$_PACKAGE_LAST_SUCCESSFUL_JOB_SUBMISSION_TIMESTAMP has no value to resolve to. Seed the destination with one Full Load run (or an explicit Fixed Date backfill) before switching to Last successful run, rather than assuming the first incremental run loads history.Full Load vs Incremental Load
The two load types call different HubSpot endpoints, and the difference matters for large objects:Select Input Fields

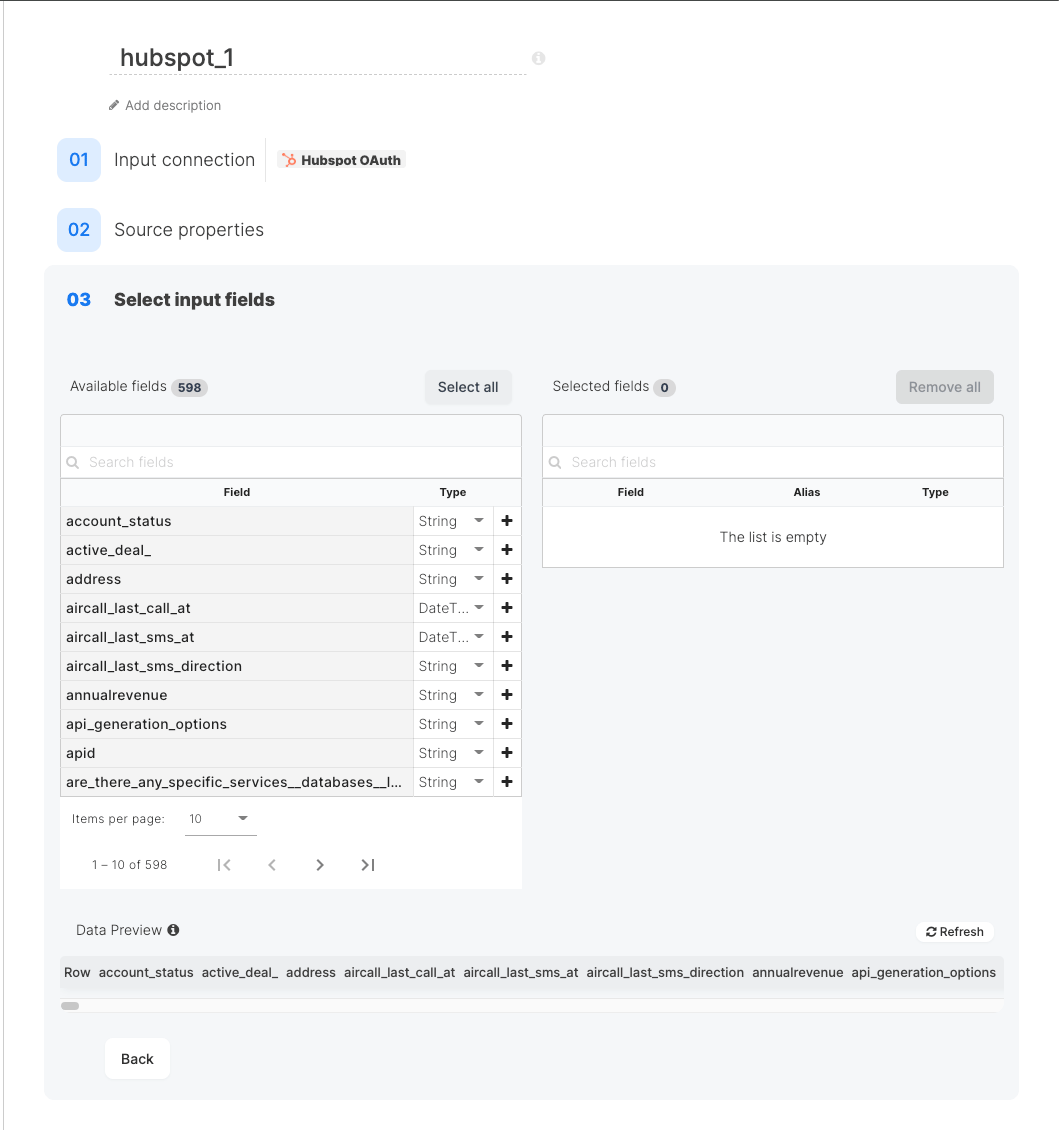

Step 03 lists the properties discovered on the selected object. Choose the columns to bring into the pipeline, optionally rename them with aliases, and override the detected data type where needed. Data Preview shows sample rows for the selected fields.
contacts once custom properties are counted. Only the fields you select are requested from HubSpot at run time, so selecting just the columns you need reduces response size and makes jobs faster and less prone to timeouts.
Properties that HubSpot marks as sensitive and highly sensitive are included in the field list alongside standard properties. Confirm your private app or OAuth app is scoped for them, and be deliberate about selecting them into a pipeline.
Data type mapping
Detected HubSpot property types map to Integrate.io types as follows:
Any type not listed falls back to string.
ID properties are mapped to string, not double. HubSpot reports record IDs as
number, but IEEE-754 doubles cannot represent integers above 2^53 exactly and render large values in scientific notation, which corrupts IDs. Properties named id, hs_object_id, associatedcompanyid, or anything ending in _id are therefore typed as string to preserve the exact value. Keep them as string when using them as a key in a downstream destination.Rate Limits and Token Refresh
The component handles HubSpot’s API limits without configuration:- Rate limiting. A rate-limited response is retried up to 5 times with exponential backoff (1s, 2s, 4s, 8s, 16s). Only after those retries are exhausted does the job fail with a rate limit error.
- Token expiry. On an OAuth connection, an expired access token is refreshed automatically and the request is retried once, so long-running jobs do not fail at the token lifetime boundary.
Best Practices
- Select only the fields you need. This is the single biggest lever on job duration for HubSpot, because every selected property is requested for every record in every page.
- Full Load first, then incremental. Seed the destination with a Full Load, then switch to Incremental Load with Last successful run. This avoids both the empty first run trap and the Search API ceiling on large backfills.
- Deduplicate on
hs_object_id. Becausenewer thanis inclusive, boundary records can appear on consecutive runs. An upsert keyed onhs_object_idmakes reruns idempotent. - Lower the page size on timeouts before assuming the object is too large. Wide objects often just need smaller pages.
- Restart clusters after changing the connection. Connection settings are applied when a cluster starts, so jobs on an already-running cluster keep the previous settings until it is restarted.
FAQ
Q: Why ishs_lastmodifieddate the only option for the sync date field?
The component restricts the sync field to HubSpot’s own last-modified timestamp so incremental runs reliably capture both new and updated records. Filtering on other date properties (custom date fields, createdate) is not currently offered.
Q: Why is Incremental Load greyed out?
The option becomes available only after the component discovers hs_lastmodifieddate on the selected object. If it stays unavailable, the object does not expose that property. Click Refresh, and confirm your app has read scope on the object so field discovery can complete.
Q: My incremental run returned fewer records than I expected. Why?
Most likely the run hit HubSpot’s Search API result cap. See Full Load vs Incremental Load. The job succeeds rather than failing, so a short result on a wide window is the symptom to look for. Narrow the window or use a Full Load.
Q: I created a custom object in HubSpot but it is not in the dropdown.
Click Refresh next to Source object to re-read the object list. If it still does not appear, the connection’s app is missing the read scope for that custom object.
Q: Can I filter or query records with a WHERE clause?
No. The HubSpot source reads whole objects, optionally narrowed by the incremental hs_lastmodifieddate filter. Apply further filtering downstream with a Filter transformation.
Q: Why did my record IDs arrive as text?
That is deliberate. See the note under Data type mapping. Large IDs cannot survive a double round trip intact, so ID properties are typed as string.
